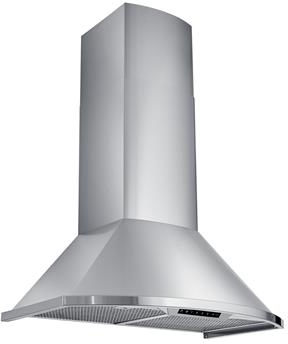

WCN1’s sleek, gently curving profile will match perfectly with your modern décor. The powerful 4-speed blower with 685 MAX CFM quickly eliminates smoke and odors to keep your kitchen fresh and clean. Brilliant LED lighting with three intensity options and attractive, dishwasher-safe filters with quick-release latches make this hood a pleasure to use.Read More
We Service What We Sell.
4-speed high performance blower features a MAX blower CFM of 685
Integrated LED modules offer 3 intensity levels
Tap-touch control features an easy to clean surface
Quick release, dishwasher-safe decorative mesh grease filters
Telescopic chimney for 8' to 9' ceiling features vents to allow for non-ducted operation. Reversible design allows openings to be hidden in most ducted applications.
With Code Ready Technology (CRT) code compliance has never been easier. CRT allows the installer to set the maximum blower speed to achieve the right level of performance offering another solution to address local codes or make-up air requirements
Non-duct recirculation capable with optional kit. (Model ANKWCN1)
Optional flue extension available for 10' to 11' ceilings. (Model AEWCN1SS)
Works with optional Universal Make-Up Air Dampers
General Specs | |
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Vent Location | Top |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 8 |
| Bulb Type | LED |
| Sones Rating | 0.9 - 11 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 685 |
| Smart Compatible | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Appliance Fit Width (cm.) | 76 |
| Width (in.) | 29.88 |
| Width (cm) | 75.8952 |
| Depth (in.) | 19.69 |
| Depth (cm.) | 50.0126 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | WCN1 |
| Manufacturer Warranty | 5 Year |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
