Product Dimensions 5"h x 29.88"w x 22"d

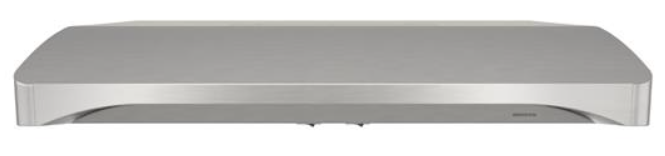

Air quality is a top concern for today’s families. The Broan series, with its superior capture efficiency, is the ideal solution. This model’s features make it a sound investment that will last for years.Read More
We Service What We Sell.
Captur™ exclusive system that provides faster smoke & odor removal
Hidden 2-speed rocker control
1-level lighting built-in LED modules (2) that provide an even lighting over the cooktop
Two high efficiency micro filters, easy to clean
Performant blower
HVI certified
Quiet range hood offering a sound level of 1.5 sones at low speed
ENERGY STAR® Certified
Use charcoal filter HPF30 for a non-ducted installation
EZ 1 brackets make it easy for single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Click here for wiring instructions.
General Specs | |
| Width (in.) | 29.88 |
| Height (in.) | 5 |
| Duct Size (in.) | 3.75 x 10 |
| Depth (in.) | 22 |
| Collection | Alta Series |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year / 3 Year LED Modules |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ADA Compliant | Yes |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 250 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Sones Rating | 1.5 - 5 |
| Fan Speed Options | 2 |
| Height Above Cooktop | 18" - 24" |
| Width (cm) | 75.9 |
| Height (cm.) | 12.7 |
| Depth (cm.) | 55.88 |
| Height Above Cooktop Centimeter | 45.72cm - 60.96cm |
| Voltage | 120 |
| Amp | 0.65 |
| Frequency | 60 |
| Range Hood Features | Charcoal Filter |
| Noise Level (Sones) | Standard - (High) |
