Product Dimensions 4.75"h x 30"w x 20"d

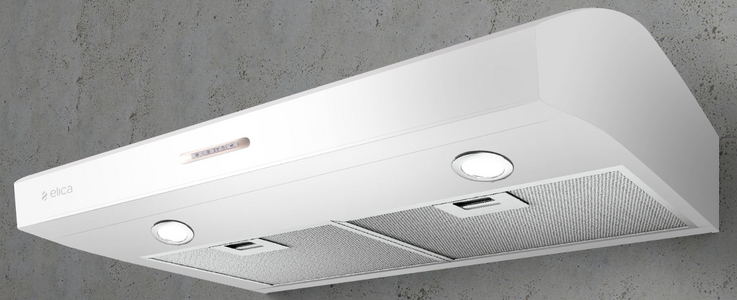

Allasio is equipped qith a 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.Read More
We Service What We Sell.
Allasio is equipped qith a 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 30” or 36” widths, Allasio is designed for standard ducted installation, and can be installed as a recirculating system, using the Recirculating Kit.
The slim Allasio with 4 3/4” height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colours will compliment other appliances and most cabinetry.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 4.75 |
| Duct Size (in.) | 7” Round |
| Depth (in.) | 20 |
| Collection | Allasio |
| Color | White |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 2 Year Parts & Labour |
| Color Finish Name | White |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 300 |
| Bulb Type | LED |
| Grease Filter Type | Aluminum Mesh |
| Sones Rating | 1.5 - 5.9 |
| Fan Speed Options | 3 |
| Width (cm) | 76.2 |
| Height (cm.) | 12.07 |
| Depth (cm.) | 50.8 |
| Voltage | 120 |
| Amp | 2,43 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Additional Attributes: | |
Specifications: | |
| Speed 1 | 120 CFM |
| Speed 2 | 210 CFM |
| Speed 3 | 300 CFM |
| Controls | Soft Touch, Blue Illuminated Controls - Front Mounted |
| Illumination | 2 LED Lights |
| Filter Type | 2 - Dishwasher safe anodized aluminum mesh grease filters |
| Duct Transition | 7” Round with Back Draft Damper (top only) |
| Installation Type | Ducted (Recirculating Kit sold separately) |
Kits: | |
| Optional recirculating Kit 30” | KIT02178 |
| Optional Backdraft Damper/ Non return Valve 7” Round | KIT02723 |
| Stainless Steel Baffle Slot Filter | GRI0131087A |
Consumable Parts: | |
| Grease Filter (1) | GF04BA |
| Carbon Filter (1) | TM01FA |
