Product Dimensions 5"h x 30"w x 18.75"d

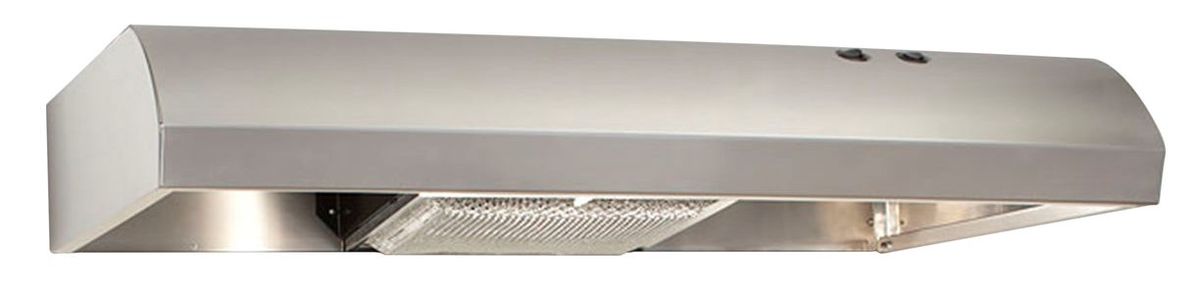

A 2-speed 190 CFM internal blower provides sufficient ventilating power for most kitchens. colour coordinated rocker switches control blower speeds and 75 Watt incandescent lighting. The anodized aluminum mesh grease filter is dishwasher safe and simple to remove and re-install. Fusaro is designed for standard ducted installation ONLY.Read More
We Service What We Sell.
A 2-speed 190 CFM internal blower provides sufficient ventilating power for most kitchens.
colour coordinated rocker switches control blower speeds and 75 Watt incandescent lighting.
The anodized aluminum mesh grease filter is dishwasher safe and simple to remove and re-install.
Fusaro is designed for standard ducted installation ONLY.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| Ventilation Type | Convertible (Both) |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 10” x 3 ¼” (Top or Rear), 7” round (sold separately) |
| Bulb Type | Incandescent |
| Sones Rating | 2.4 - 5.6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 190 |
| Fan Speed Options | 2 |
| Appliance Fit Width (in.) | 30 |
| Appliance Fit Width (cm.) | 76 |
| Width (in.) | 30 |
| Width (cm) | 76.2 |
| Height (in.) | 5 |
| Height (cm.) | 12.7 |
| Depth (in.) | 18.75 |
| Depth (cm.) | 47.63 |
| ENERGY STAR Certified | No |
| Collection | Elica |
| Manufacturer Warranty | 2 Year Parts & Labour |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
Additional Characteristics: | |
Specifications: | |
| Speed 1 | 110 CFM |
| Speed 2 | 190 CFM |
| Controls | colour matched/coordinated Rocker Switches |
| Illumination | 1.75 w Incandescent lamp, 1 intensity |
| Filter Type | Dishwasher safe, Aluminum mesh grease filter |
| Metal Mesh Filters | 1 |
| Installation Type | Duct out only |
Kits: | |
| Duct transition 7” round | KIT02722 |
| Back Draft Damper 7” round | KIT02723 |
| No return valve (10” x 3¼” rectangular) | KIT02724 |
Consumable Parts: | |
| Light Bulb (1) | 1-75 W max 120V incandescent light bulb |
