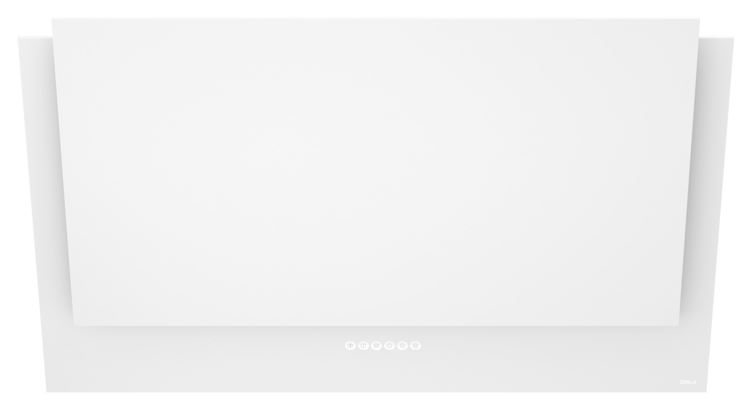

Zephyr Designer Collection Apex 36" Matte White Glass Wall Mounted Range Hood

Zephyr

Model #:

DAP-M90AMWX

At a Glance

Product Dimensions 19.75"h x 35.38"w x 19.81"d

Sharp angles, a glossy exterior, and cutting-edge functionality come together to create the distinguished Zephyr’s Apex Wall hood. This hood features Capacitive Touch controls, Tri-level LED lighting, multiple blower options, Auto delay-off and Clean Air Function that automatically turns the range hood on Speed 1 every four hours for 10 minutes to circulate the air. Optional internal and external blower and duct covers are sold separately.Read More

$2,549.00
$3,308.00Save $759.00

What We Offer

You Might Also Need

View Options

None Selected

We Service What We Sell.

Get to know this product.

Product Overview

Product Overview

Multiple blower options

Capacitive touch controls

Tri-level lighting

LED lighting

Vertical or horizontal ducting

Optional wireless remote control

Optional duct cover extension kit

*Range hood only; blower sold separately.

Useful Documents
Specification Sheet
User Manual - Bilingual
Blower Specifications
Duct Cover Extension
Make-Up Air Kit
Specifications

General Specs

Width (in.)35.38
Height (in.)19.75
Duct Size (in.)6" Round, 8" Round
Depth (in.)19.81
CollectionApex
ColorWhite
Shipping Depth (cm)97.54
Shipping Height (cm)66.55
Shipping Width (cm)58.42
Weight Kilogram29.48
Appliance Fit Width (cm.)90
Manufacturer Warranty1 Year Labor / 2 Year Parts
Color Finish NameMatte White Glass
Range Hood TypeWall Mounted
ADA CompliantYes
ENERGY STAR CertifiedNo
Product Weight (lbs.)55
Appliance Fit Width (in.)36
Smart CompatibleNo
Grease Filter TypeAluminum Mesh
Bulb TypeLED
Sones Rating1.4 - 6
Fan Speed Options3
Height Above Cooktop24 - 36
Shipping Depth (in.)38.4
Shipping Width (in.)23
Shipping Height (in.)26.2
Width (cm)89.85
Height (cm.)50.17
Depth (cm.)50.32
Product Weight (kg)24.95
Height Above Cooktop Centimeter60.96 - 91.44
Voltage120
Amp6.42
Frequency60
Range Hood FeaturesAutomatic Shut Off
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Compatible Blower Models

Internal Blower (CBI-290C)200-290 CFM, 1.4-3 sones
Internal Blower (CBI-600A)240-600 CFM, 1.8-6 sones
In-Line Blower (PBN-1000A)500-1,000 CFM
External Blower (CBE-1000)500-1,000 CFM
