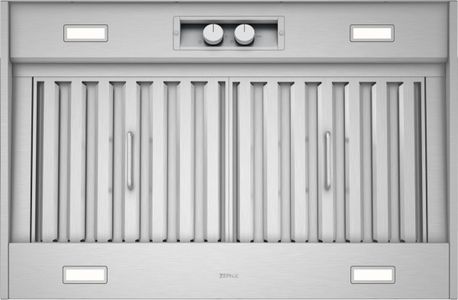

Zephyr Pro Collection Spruce 36" Stainless Steel Outdoor Insert Range Hood

Zephyr

Model #:

AK9834BS

Model #: AK9834BS
1200503
Zephyr
$3,269.00

At a Glance

Product Dimensions 12"h x 34.38"w x 22.5"d

The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, directional LumiLight LED lighting, and pro baffle filters to enhance airflow.Read More

$3,269.00

Appliance Fit Width (in.):36

Get to know this product.

Product Overview

Product Overview
Main Features

1200 CFM

Not recirculating

Pro baffle filter

Stainless steel

Vertical ducting

Other Features

LumiLight LED lighting

Dual-level lighting

304-grade stainless steel

Metallic knob controls

Grease collection tray

Useful Documents
Specification Sheet
User Manual
HVAC Fittings
Exploded View Diagram
Specifications

General Specs

ColorStainless Steel
Width (in.)34.38
Installation TypeBuilt-In
Depth (in.)22.5
Height (in.)12
Duct Size (in.)10" Round
Fan Speed Options3
MaterialMetal
Voltage120
CollectionSpruce
Frequency60
Outdoor ApprovedYes
Manufacturer Warranty1 Year Labor / 3 Year Parts
Range Hood TypeInsert
Appliance Fit Width (in.)36
Vent LocationTop
Color Finish NameStainless Steel
Maximum CFM1200
Grease Filter TypeBaffle
Sones Rating3.5 - 9
Height Above Cooktop30" - 36"
Width (cm)87.33
Height (cm.)30.48
Depth (cm.)57.15
Height Above Cooktop Centimeter76.2 cm - 91.44 cm
Amp6.5
Appliance Fit Width (cm.)87
